42"x96"x2-1/4" Knotty Alder 6-Lite TDL with Grooved Bottom Panel

Brand: DSA Doors

Product ID: 9457316004121

Model: Keowee E-01

42"x96"x2-1/4" Knotty Alder 6-Lite TDL with Grooved Bottom Panel

Brand: DSA Doors

Product ID: 9457316004121

Model: Keowee E-01

  • 1

    Door Information

    Door Size (W x H)

    Factory Finish Options Make your selection

    Color Disclaimer

    It's important to note that factory finish color options displayed online may vary slightly from the actual finish color on the product/s you receive. While they are a vary close representation, the digital colors on screens can be influenced by various factors, including monitor settings, screen resolution, and lighting conditions. Additionally, different manufacturers and brands may interpret and reproduce colors differently. As a result, the colors you see on this website may not always perfectly match the real-world appearance of the products.

    IMPORTANT

    Please be aware that by selecting a factory finish for a door slab or prehung unit, you are agreeing to the item being considered non-returnable and non-refundable.

    Pre-Hanging Make your selection

  • 2

    Frame Information

    Door Jamb Make your selection

    What jamb size do I need?

    When placing an order for a prehung door, it's important to ensure that you select the correct door jamb size. In most instances, when the wall where you intend to install the door consists of 2x4 wall studs, a 4-inch jamb is typically required. Suitable jamb sizes for 2x4 walls include 4-1/2", 4-5/8", 4-9/16", and 4-3/4". If your door unit is intended for a wall with 2x6 framing, you should expect the jamb size to be 6-1/2", 6-5/8", or 6-9/16", all of which are acceptable sizes.

    If you have an existing door jamb you are replacing, a diagram provided below illustrates which part to measure. If your measurement falls outside the specified numbers above or if you are uncertain about your measurement, we strongly recommend consulting with your installer.

    For custom jamb sizes, please contact us, and one of our associates will be glad to assist you.

    IMPORTANT

    Please be aware that by selecting a prehung unit, you are agreeing to the item being considered non-returnable and non-refundable.

    Exterior Brickmould Make your selection

    Exterior Door Trim

    Exterior door trim refers to the decorative and functional elements installed around the outer frame of an exterior door. This trim serves multiple purposes, including enhancing the aesthetic appeal of the doorway, providing weather protection, and helping to seal gaps between the door and the wall. Exterior door trim can be made from various materials, such as wood, vinyl, metal, or composite materials.

    Interior Casing Make your selection

    Interior Door Trim

    Interior door trim is the decorative molding and framing applied to the interior sides of a door frame or doorway. Its primary function is to enhance the aesthetics of a room and to provide a smooth transition between the door and the adjacent wall. Interior door trim can come in a variety of styles and materials, including wood, MDF (medium-density fiberboard), vinyl, or composite materials. Interior door trim is primarily decorative and helps create a cohesive and finished look within interior spaces.

    Handing Make your selection

  • 3

    Door Hardware

    Hinges Make your selection

    Hardware Color Explanation

    Black/Bronze

    Black/bronze is a versatile color option that combines the deep, rich tones of black with the warm, earthy hues of a dark bronze. It often appears as a dark, matte finish that can add a sense of sophistication and elegance to various design elements. Black/bronze finishes are commonly used in interior and exterior hardware, such as door handles, hinges, and door sills.

    Note: The bronze color used is often mistaken for black and will work well with black or bronze handle and lock sets.

    Satin Nickel:

    Satin nickel is a popular metallic finish known for its smooth, muted sheen and silver-gray appearance. It is achieved by applying a nickel plating with a brushed or satin finish, resulting in a soft, matte surface. Satin nickel is a versatile choice for a wide range of applications, including door hardware, hinges and sills. Its subtle luster gives it a modern and timeless aesthetic that can complement both contemporary and traditional design styles.

    Sill Make your selection

    Hardware Color Explanation

    Black/Bronze

    Black/bronze is a versatile color option that combines the deep, rich tones of black with the warm, earthy hues of a dark bronze. It often appears as a dark, matte finish that can add a sense of sophistication and elegance to various design elements. Black/bronze finishes are commonly used in interior and exterior hardware, such as door handles, hinges, and door sills.

    Note: The bronze color used is often mistaken for black and will work well with black or bronze handle and lock sets.

    Satin Nickel:

    Satin nickel is a popular metallic finish known for its smooth, muted sheen and silver-gray appearance. It is achieved by applying a nickel plating with a brushed or satin finish, resulting in a soft, matte surface. Satin nickel is a versatile choice for a wide range of applications, including door hardware, hinges and sills. Its subtle luster gives it a modern and timeless aesthetic that can complement both contemporary and traditional design styles.

    Handle Preparation Make your selection

    How should I have the door prepared for a handle and/or a lock set?

    Preparation for Handle and Deadbolt

    This is the most commonly recommended method and is considered a universal preparation that should be compatible with most standard handle and deadbolt sets available on the market. The door will be drilled with a standard 2-3/8" backset and a 2-1/8" diameter hole. The handle and deadbolt holes will be spaced 5-1/2" center to center, designed to accommodate all-in-one units.

    Handle and Deadbolt with Factory Hardware

    Your door will be prepared for a handle and a deadbolt, and you have the option to choose from factory hardware selections that can come pre-prepared and, in many cases, pre-installed.

    No Handle Preparation

    Your door will not be prepared for any hardware, allowing you the flexibility to have it prepared on-site to match the handle and/or lock set style of your choice.

    Handle Only

    The door will be drilled with a standard 2-3/8" backset and a 2-1/8" diameter hole specifically for a handle.

    Deadbolt Only

    The door will be drilled with a standard 2-3/8" backset and a 2-1/8" diameter hole specifically for a deadbolt.

    Multipoint

    *** IMPORTANT *** Before selecting this option, please be aware that procuring your own handleset for this style of preparation can be challenging due to the variety of multipoint locking systems and brands available. We highly recommend speaking with one of our professionals before choosing this option. If you desire the multipoint locking option, we suggest selecting "Multipoint with Factory Hardware."

    Multipoint with Factory Hardware

    This option provides you with a multipoint locking system, including a handleset from the manufacturer that is guaranteed to work seamlessly with your multipoint locking system.

    Multipoint Handle Options Make your selection

    Tubular Entry Set Make your selection

$4,410.00

We Require a Minimum Of Six (6) Interior Doors Per Shipment

Available Configurations

Pre-hung 42"x96"x2-1/4" Eyebrow Radius Knotty Alder 6-Lite TDL Entry Door with Grooved Bottom Panel Pre-hung 42"x96"x2-1/4" Eyebrow Radius Knotty Alder 6-Lite TDL Entry Door with Grooved Bottom Panel Pre-hung 6-Lite TDL Knotty Alder Double Doors Eyebrow Radius Top with Grooved Bottom Panel and Clear Beveled Glass Pre-hung 6-Lite TDL Knotty Alder Double Doors Eyebrow Radius Top with Grooved Bottom Panel and Clear Beveled Glass Pre-hung 6-Lite TDL Knotty Alder Double Entry Doors with Eyebrow Transom and Grooved Bottom Panel Pre-hung 6-Lite TDL Knotty Alder Double Entry Doors with Eyebrow Transom and Grooved Bottom Panel
1 Item Added to Cart ()
View Cart & Checkout

Product Description

Product Description

  • 42"x96" Knotty Alder 6-Lite entry door
  • Lower panel is arched and V-Grooved on both sides
  • True divided lite design - each opening contains an independent piece of clear beveled Low-E glass
  • Door features tempered, dual insulated, clear beveled
  • Door is 2-1/4" thick to protect against warping
  • Knotty Alder laminated veneer lumber and core - Offers more stability and resistance to warping than solid wood.
  • Engineered stile and rail construction protects the door against warping, shrinking and splitting
  • Wood is carefully kiln-dried and is ready for staining
  • Prefinish is available with prehanging option. Otherwise, doors are sold unfinished

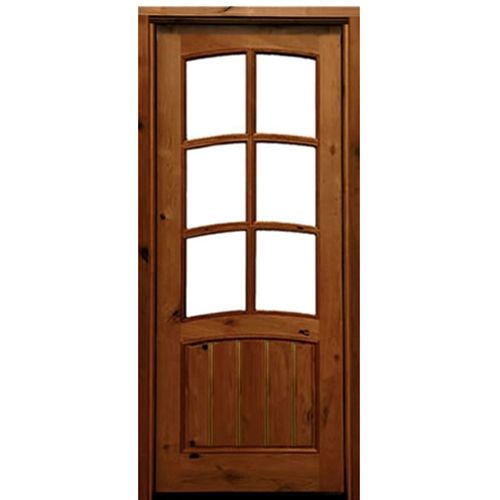

  • Picture illustrates a finished door unit

SPECS:
Door Type: Exterior
Door Style: Rustic / TDL
Wood Species: Knotty Alder
Core: Knotty Alder
Construction: Engineered Stile and Rail
Door Thickness: 2-1/4"
Outside Jamb Dimensions: 43-3/4"w x 99"h
Rough Opening Dimensions: 44-1/2"w x 99-3/4"h
Glass Type: Dual, Insulated, Low-E
Glass Style: Clear Beveled
Finished: Optional, available with pre-hanging option
Paintable/Stainable: Yes/Yes
Florida Approved: Optional, call us for details
FSC Certified: No
Warranty: 1 Year Limited Manufacturer Warranty

Specs & Measurements

Specs & Measurements

Door Type: Exterior Door

Material: Wood, Knotty Alder

Style: Rustic, Southwestern, Mediterranean, French, Divided Lite, Modern Farmhouse

Click a link below to view detailed dimensions:

Manufacturer Information Links:

Shipping & Lead Times

Shipping & Lead Times

All doors and door units are shipped via LTL ( Less than truckload ). We ship manufacturer direct to your preffered location. Once your order has shipped we will provide your with the carrier name and contact. They will contact you to schedule a day and time for delivery. For detailed information regarding our shipping and shipping policies, please click here.

Lead Times:

We make every effort to provide the best estimated lead times for each vendor by analyzing the latest available data and visible trends.

Manufacturer Name: DSA

Unfinished Door Slab 1-2 Weeks

Finished Door Slab 3-4 Weeks

Unfinished Prehung Unit 3-4 Weeks

Finished Prehung Unit 8-10 Weeks

Warranty Information

Warranty Information

At doors.com, we hold the privilege of being an Authorized Dealer for the esteemed brands we carry. When you choose to purchase from an authorized dealer, you are making a decision rooted in trustworthiness and reliability. Our direct sourcing from manufacturers ensures that you receive factory-fresh products backed by comprehensive warranties.


We strongly encourage you to thoroughly review the manufacturer's warranty, ensuring compliance with all stipulations and guidelines. Your satisfaction and confidence in your purchase are of paramount importance to us.


Hoelscher Weatherstrip Mfg. Co., Inc. offers a limited warranty for (5) years.


Access and download the warranty provided by the manufacturer for this product here.

DSA Pivot Door Warranty DSA Standard Warranty DSA Wynnstellar Warranty
